What are the Different Types of Fascia Board?

When searching or shopping for materials to construct or refurbish your roofline, it’s important to know that not all fascia boards are the same. Whilst they all serve the purpose of protecting the roofline and supporting guttering, fascia boards will vary greatly in material, thickness, widths as well as the applications they are typically used in.

Understanding the different types of fascias available can help you choose the right option for your project, which is why we have created the table below, which showcases many of the different types of boards that are currently on the market, from popular PVC styles to more niche options like copper fascia. Please note that not every colour of each fascia board type will be available in all of the widths listed.

Types of Fascia Boards

FASCIA BOARD TYPE	IMAGE	THICKNESS	WIDTHS	APPLICATION INFORMATION

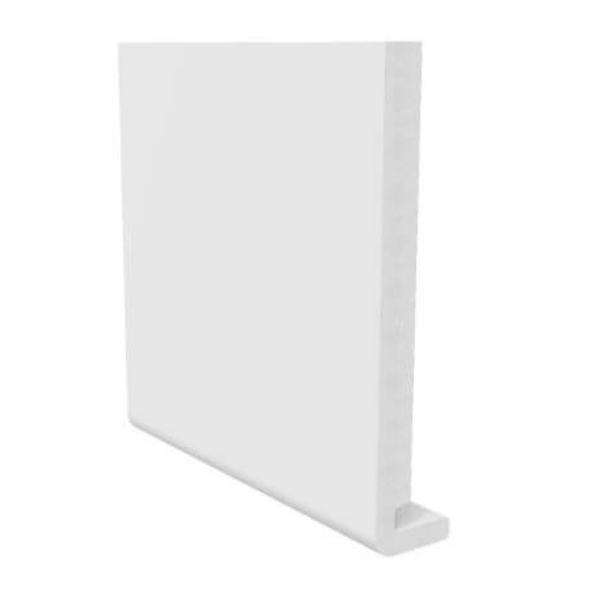

Replacement Fascia Boards		18mm	150mm 175mm 200mm 225mm 250mm 275mm 300mm 400mm - 410mm (box end board)	These 18mm thick boards are very popular for replacing old rotten timber fascias on the rooflines of residential homes. They are also used on new builds in place of traditional timber fascias 18mm fascia boards are also known as barge boards, as they are not only used along the sides of the property but also on top of the gables.

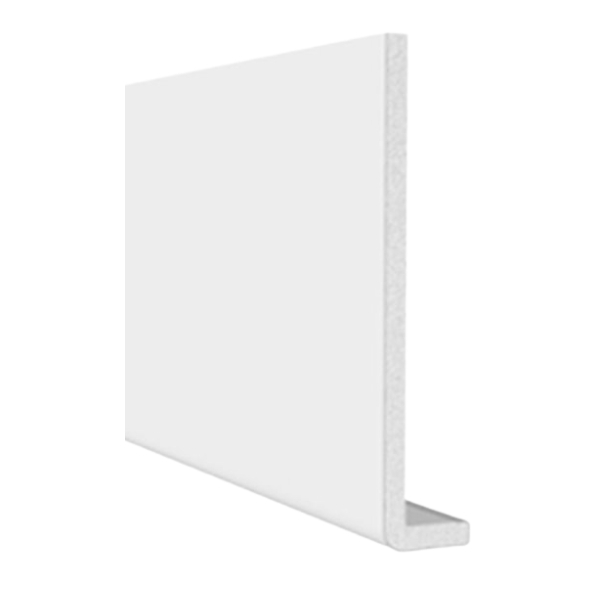

Fascia Capping Boards		10mm	100mm 150mm 175mm 200mm 225mm 250mm 275mm 400mm - 410mm (box end board)	Capping boards are used in similar applications to replacement fascia boards. The key difference is that they cover existing timber fascias that are still structurally sound, rather than replacing them. This makes them popular in home refurbishment projects.
Ogee Fascia Boards		18mm	150mm 175mm 200mm 225mm 250mm 300mm	Ogee boards boast all of the same benefits as regular PVC fascias but offer a more decorative appearance. Used on properties where a more traditional style roofline finish is desired. Often used in conjunction with ogee gutters on replacement or new build projects.

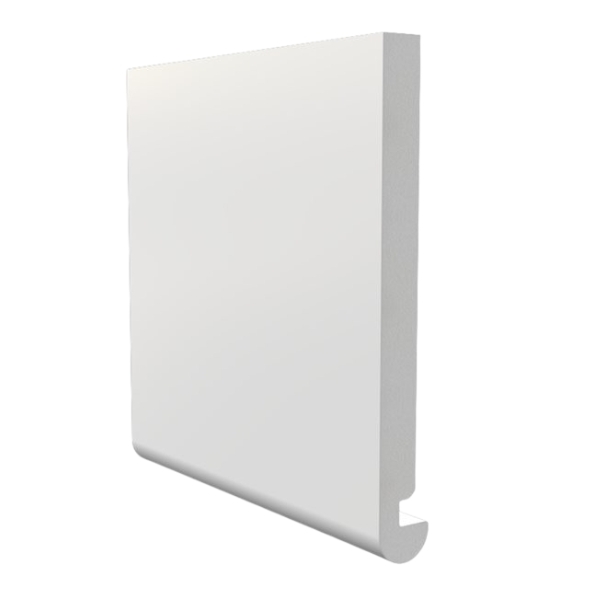

Bullnose Fascia Boards		18mm	150mm 175mm 200mm 225mm 250mm 405mm (box end board)	Used on modern or minimalist style properties due to their clean finish once installed. These boards don't have a return leg, meaning they can be installed directly to open eaves. They can still accommodate a soffit board if required thanks to a moulded concave section at the bottom of the boards.

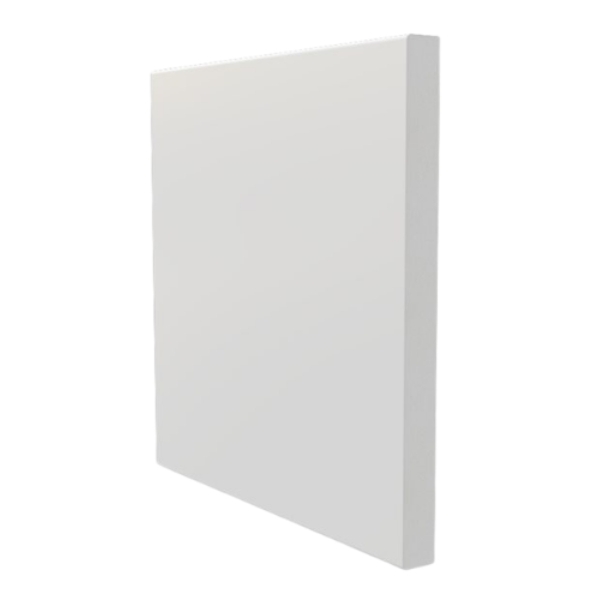

Flat Fascia Boards		16mm	100mm 125mm 150mm 175mm 200mm 250mm 300mm	Flat fascia boards are most commonly used on flat-roofed buildings where there is no roof projection, such as extensions or garages. They are also used on traditional-style buildings with low roofs and exposed rafters. These boards have no return leg and fit flush with the wall of the building.

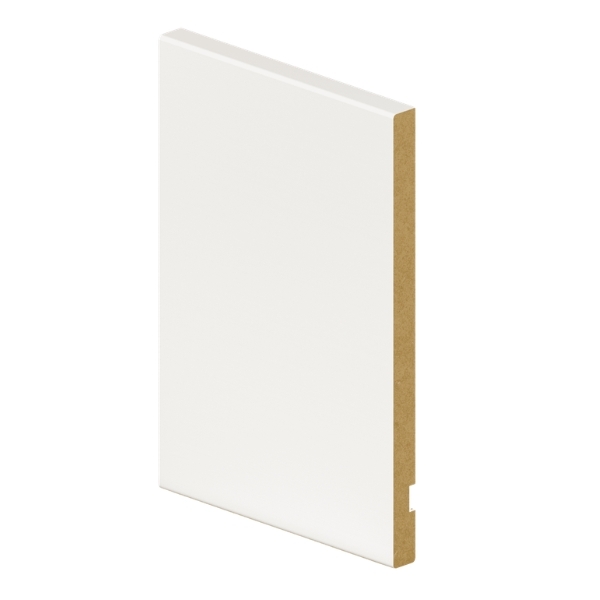

MDF Fascia Boards		15mm	175mm 225mm	MDF fascia boards are another type of fascia board that doesn't feature a return leg. This makes them suitable for use on modern properties or those with a flat roof where they can be fixed directly to the walls. Although they are not made from PVC or metal, they are still moisture-resistant.

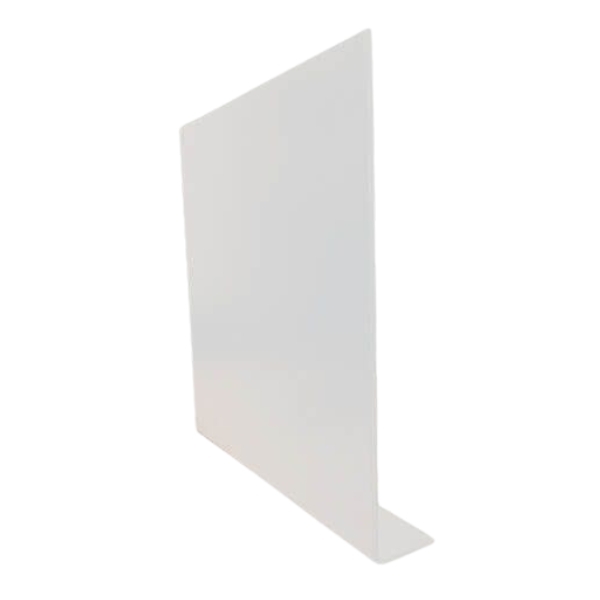

Aluminium Fascia Boards		2mm	150mm 175mm 210mm 300mm	Aluminium fascia boards' low thickness makes them lightweight and easy to manoeuvre. However it does mean they require the support of a backing board. They are commonly installed on modern commercial and architectural projects. Aluminium fascias are also suitable on properties near the coast due to their corrosion resistance.

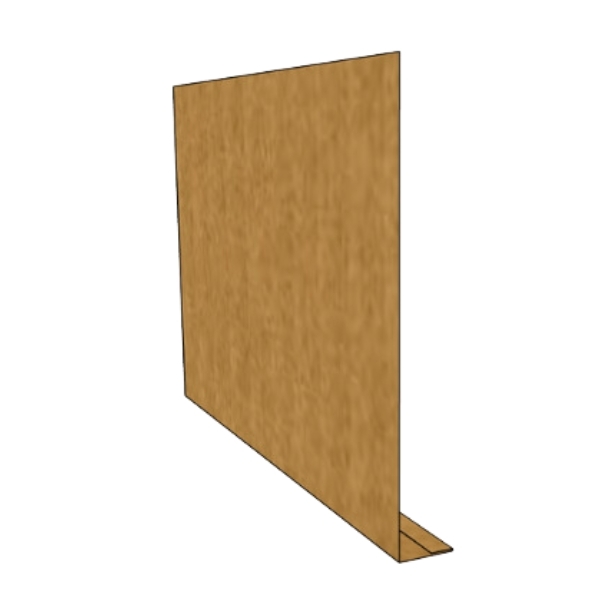

Copper Fascia Boards		2mm	150mm 175mm 200mm 250mm 300mm	Copper fascias are a premium and niche fascia option that are often installed on high-end residential properties. Since copper develops patina over a long period of time, these fascias will slowly turn green as the years go by, providing a unique appearance. They are fitted over a backing board to give them support.

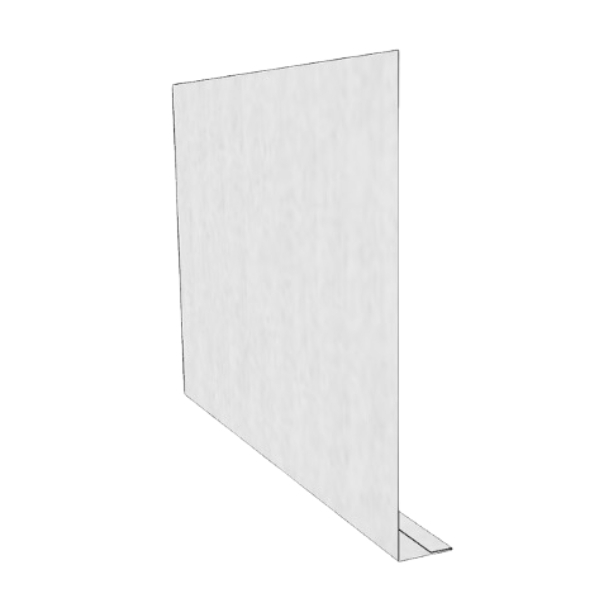

Zinc Fascia Boards		2mm	150mm 175mm 200mm 250mm 300mm	Zinc fascias offer a sleek metallic roofline appearance and are another type of fascia, like aluminium, that is used on high-end commercial properties. They can be paired with galvanised steel gutters for a metallic look across the exterior of the property. They are fitted over a backing board to give them support.
