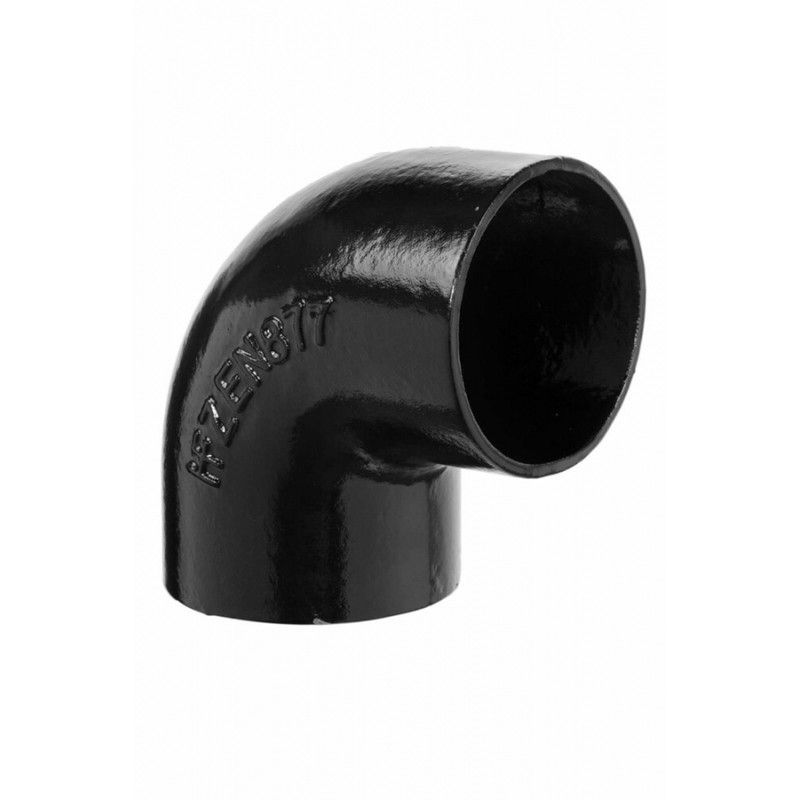

Push Fit Cast Iron Soil Bend - 92.5 Degree x 100mm
Click or tap the image to open in fullscreen
| Code | TX4003M |
|---|---|
| EAN Code | 0691208238632 |
| Angle | 92.5 Degree |
| Brand | Hargreaves Traditional Express |
| Colour | Black |
| Diameter | 100mm |
| Material | Cast Iron |
| Pack Size | Single |
| Life Expected | 100 Years + |
| Specification | BS 416/2 (Cast Iron) and BS EN 681 (Gaskets) |
| System Size | 100mm |
This 92.5 degree short radius bend is used to create a 90 degree change of direction in the soil stack. The 92.5 degree angle of the bend is used to create a fall of 2.5 degrees within the system, promoting a self-cleansing flow.
As our push fit cast iron soil pipes and fittings are all plain ended, sockets are required to connect this bend to a pipe.
All of our push fit cast iron soil fittings are treated to a factory black two-pack gloss paint finish. The whole range is manufactured in grey cast iron to BS EN 1561.
This soil pipe range is particularly well-suited to installations in public buildings, listed buildings and conservation projects. It is 100% recyclable. Click here to view or download full installation instructions.
