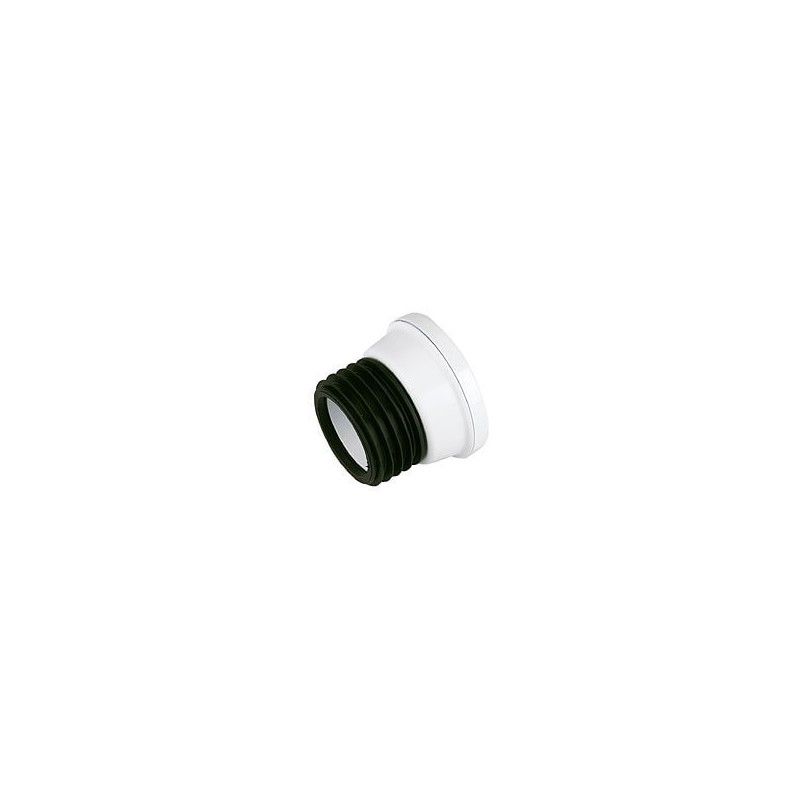

FloPlast Straight Pan Connector - White
In stock
Code
SP101
Click or tap the image to open in fullscreen
5 stars
From 4 reviews
| Code | SP101 |
|---|---|
| EAN Code | 5055149906107 |
| Weight (kg) | 0.213000 |
| Brand | FloPlast |
| Colour | White |
| Diameter | 110mm |
| Material | Polypropylene |
| Pack Size | Single |

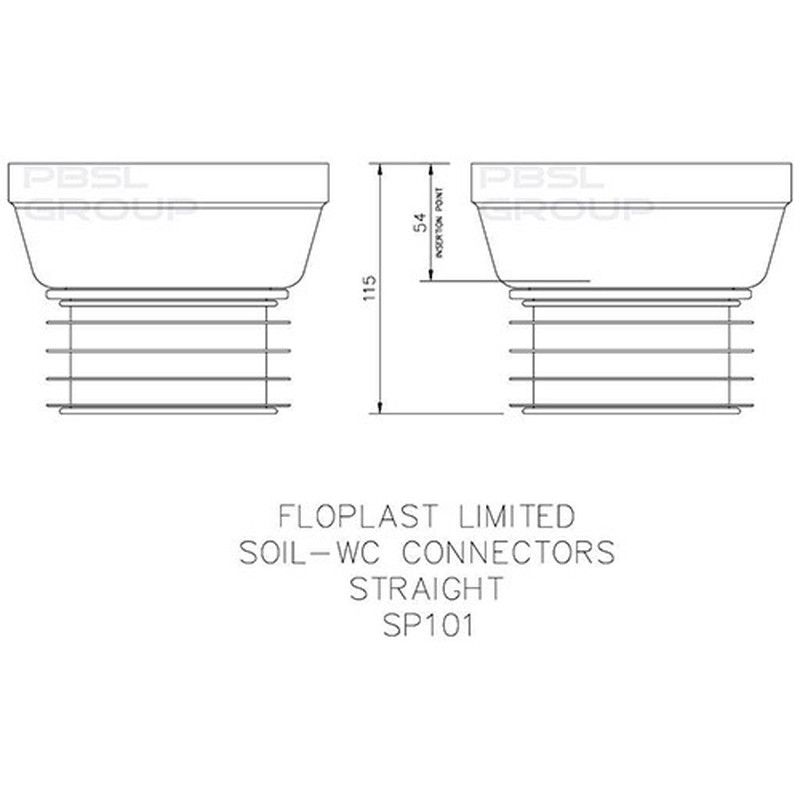

| Dimension | Fits inside 110mm Soil Pipe - Overall Length 110mm |
| Guarantee | 10 Year Manufacturer Performance Guarantee |
| Specification | BS5627:1984 |
| System Size | 110mm |
Probably the most commonly used pan connector, it is used to install all WC pans with a horizontal outlet.
All of the fins on the outlet of the pan connector should be pushed securely into the soil pipe to make the connection. The neck of the pan is then pushed inside the large ring seal at the front of the pan connector. A small application of silicon spray is often useful to facilitate this pan connection. Once the connection has been made, double check that no part of the seal is kinked or trapped.
Our pan connectors are made in durable polypropylene to BS5627:1984. The integral sealing diaphragm allows for out of alignment connections of up to 5 degrees in any direction.
