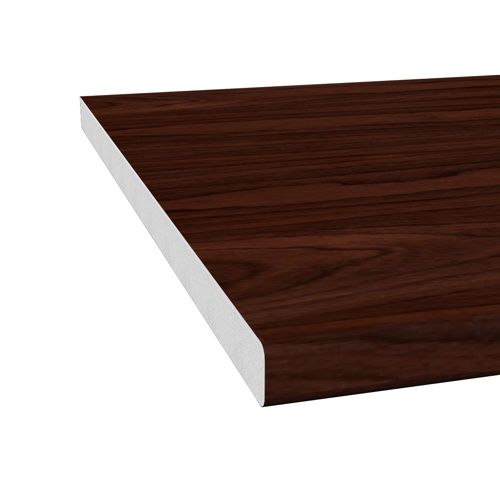

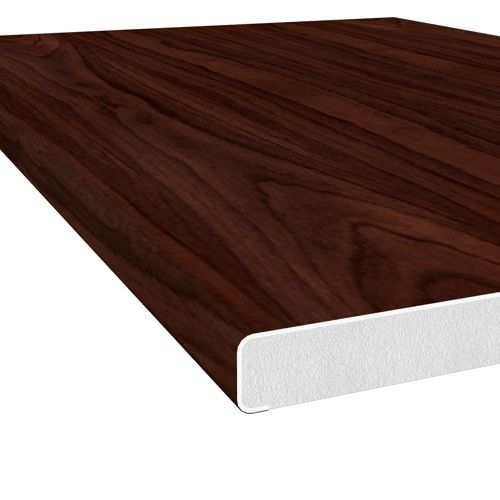

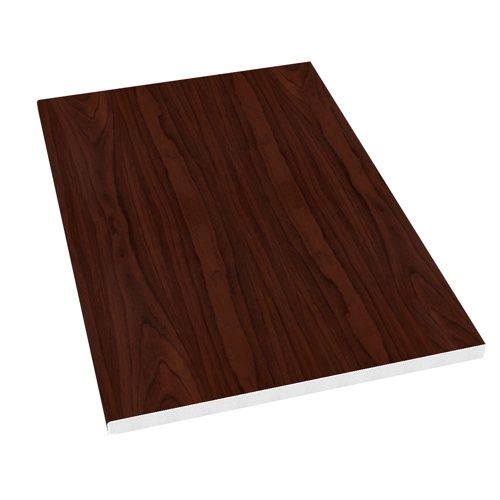

405mm Rosewood Soffit Board - 10mm x 5mtr
Click or tap the image to open in fullscreen
| Code | GPB405WGR |
|---|---|
| Length | 5mtr |
| Material | PVC-u |
| Thickness | 10mm |
Product Overview
Our 10mm Rosewood Woodgrain Plain Soffit Boards (Nearest Equivalent RAL 8017) come in a range of widths between 100 mm to 404 mm, and are supplied in 5 metre lengths. This general-purpose soffit board is designed to close off and protect the underside of roof overhangs, giving the eaves a clean, low-maintenance finish while helping shield rafters from moisture.
The woodgrain Rosewood surface suits most property styles and is suitable for both new build and refurbishment projects. Manufactured to BS EN 13245-2:2008 standard and supplied with a 10 year manufacturers guarantee, it offers long term durability for residential and light commercial installations. For a visual explanation, please take a look at our short video which explains which parts go where in the roofline construction
Key Benefits & Features
- Woodgrain Rosewood finish for a clean and modern appearance
- Low maintenance uPVC material that will not rot, swell, or require painting
- 10 year manufacturers guarantee, resistant to moisture and discolouration for long term durability
- 5 metre length reduces the number of joints needed for a neater finish
- Complies with BS EN 13245-2:2008
- Lightweight, easy to handle, and simple to cut on site
- Suitable for residential and light commercial roofline applications
- Ideal for use with matching white fascia boards, trims, and guttering
Installation Guidance
- Fix the plain soffit boards using 40mm polytop pins spaced no further apart than 400mm.
- Connect each soffit length with the next one using H joint trim. This trim is also used to join the soffit at the corners of the eaves.
- Add ventilation using separate soffit vents if required by your roof design.
