Inspection Chamber Set Block Paving - 300mm Diameter

In stock
Code
M300MH2

Click or tap the image to open in fullscreen

Inspection Chamber Set Block Paving - 300mm Diameter
More Information
Code M300MH2
EAN Code 0691208219129
Brand FloPlast and Clark-Drain
Colour Black
Material PVC/ Polypropylene Cover
Chamber Type For Block Paving
Dimension Height to Top of Cover 800mm
Specification BS 7158
Size 300mm Diameter
£113.08 £94.23
Spend another £1500 to pay over time with Klarna

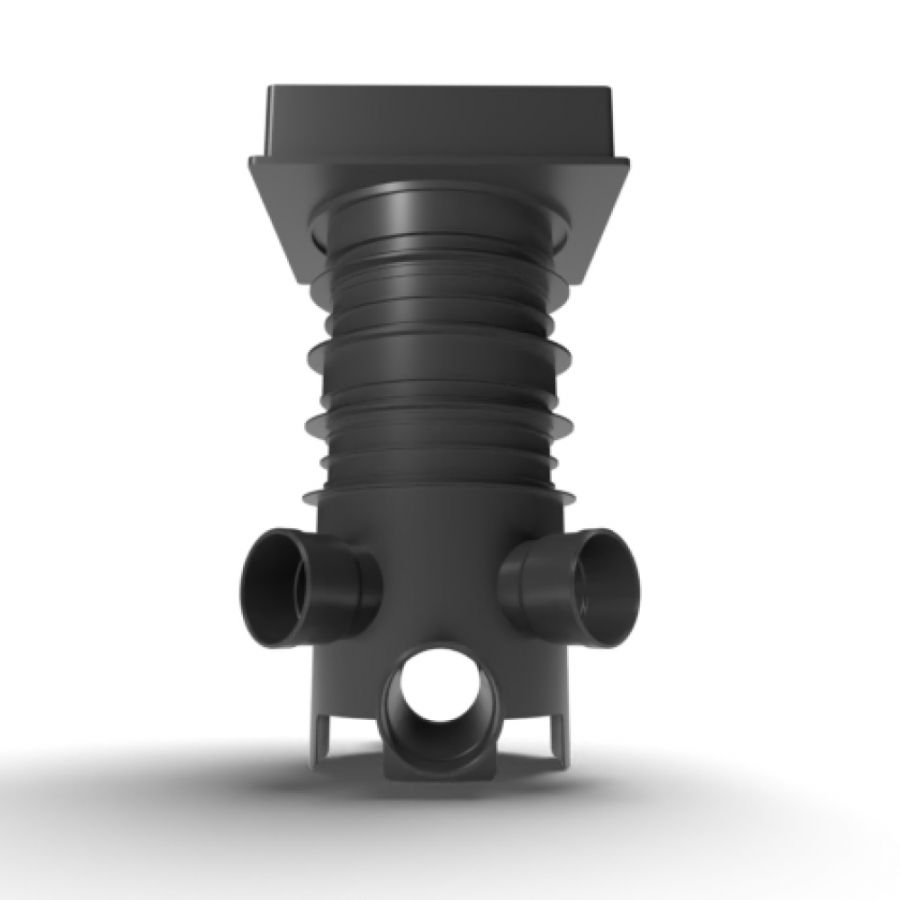

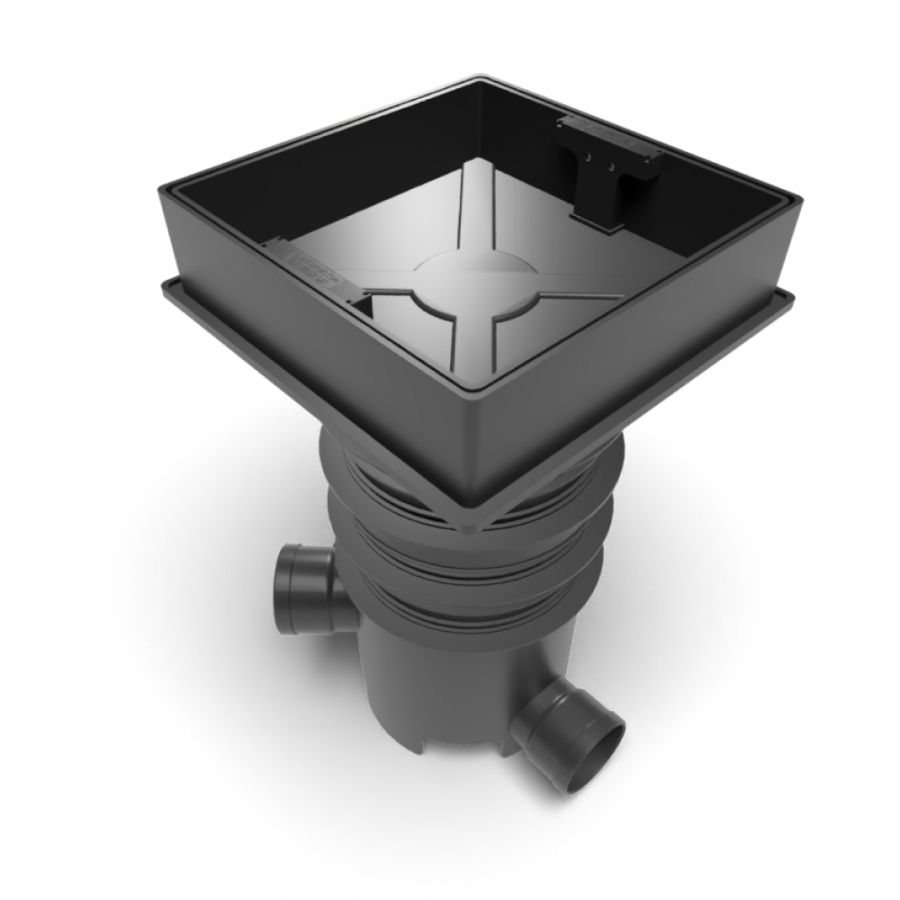

300mm Mini Inspection chamber set with a block pavior manhole cover.

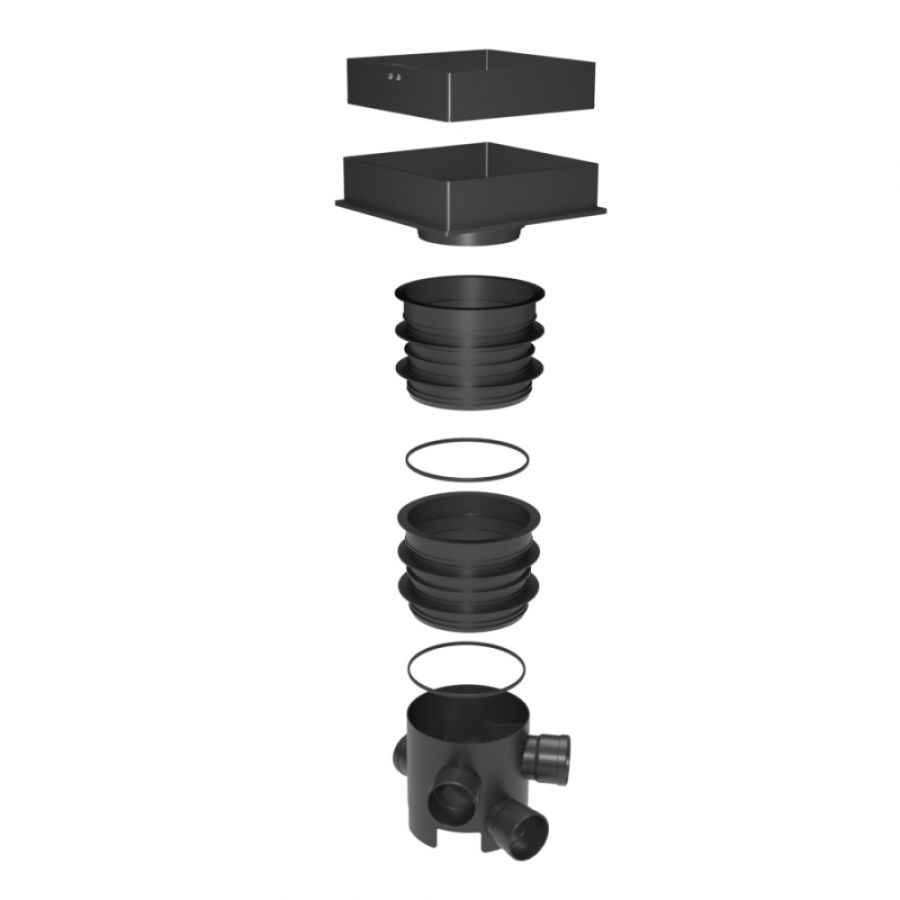

This chamber set includes all of the components required to form a 300mm mini inspection chamber  - one base section, two 200mm sectional risers and a square cover and frame which is an 80mm recessed cover, ideal for paviors or paving slabs.

The overall depth of the chamber from the invert level to the top of the manhole cover is 800mm. If you need to make small adjustments to the height then the sectional risers may be cut to size using a standard fine-toothed saw.

The main channel of the base is left open and the side inlets are blanked off with integral blanking plugs - simply remove the blanking plug by pushing it out from within the base to open and use the side inlets.

The cover has a 35Kn load rating making it suitable for use in domestic driveways.

For a quick overview of this product please watch the short video below;


For a more in-depth description guide to the use of mini access chambers please take a look at the more detailed information video below.
