Inspection Chamber Set with Polypropylene Cover - 450mm Diameter For 160mm Drainage

In stock
Only %1 left
Code
450MH160

Click or tap the image to open in fullscreen

Inspection Chamber Set with Polypropylene Cover - 450mm Diameter For 160mm Drainage
More Information
Code 450MH160
£119.20 £99.33 £98.64
Spend another £1500 to pay over time with Klarna

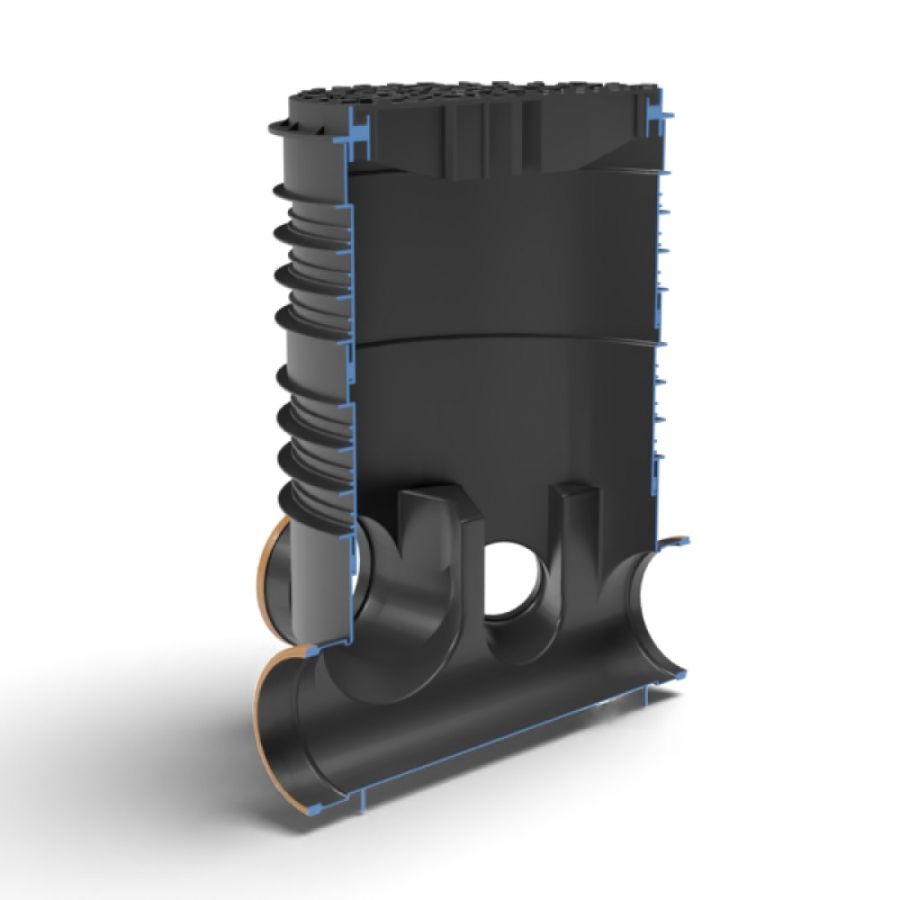

This chamber set includes all of the components required to form a 450mm diameter inspection chamber for use in conjunction with our 160mm PVC-u drainage system;

  • One base section with a 160mm main channel, 2 x 160mm Inlets at 90 Degree and 2 x 110mm Inlets at 45 Degree
  • Two 235mm sectional risers
  • One circular polypropylene cover and frame.

The overall depth of the chamber from the invert level to the top of the manhole cover is 800mm. If you need to make small adjustments to the height then the sectional risers may be cut to size using a standard fine-toothed saw. Alternatively if you need to increase the height of the chamber you can add more D916 risers up to a height of 1200mm with the standard cover and frame (or up to 3m if you use a CLKS499 access restrictor).

The main channel of the base is left open and the side inlets are blanked off with integral blanking plugs - simply remove the blanking plug by pushing it out from within the base to open and use the side inlets.

The cover has a 35Kn load rating making it suitable for use in domestic driveways.

For more information on this product, please watch the brief video below.

Looking to use an Inspection Chamber at change of direction for an underground drainage pipe run? Then please watch the video below for a detailed explanation.
