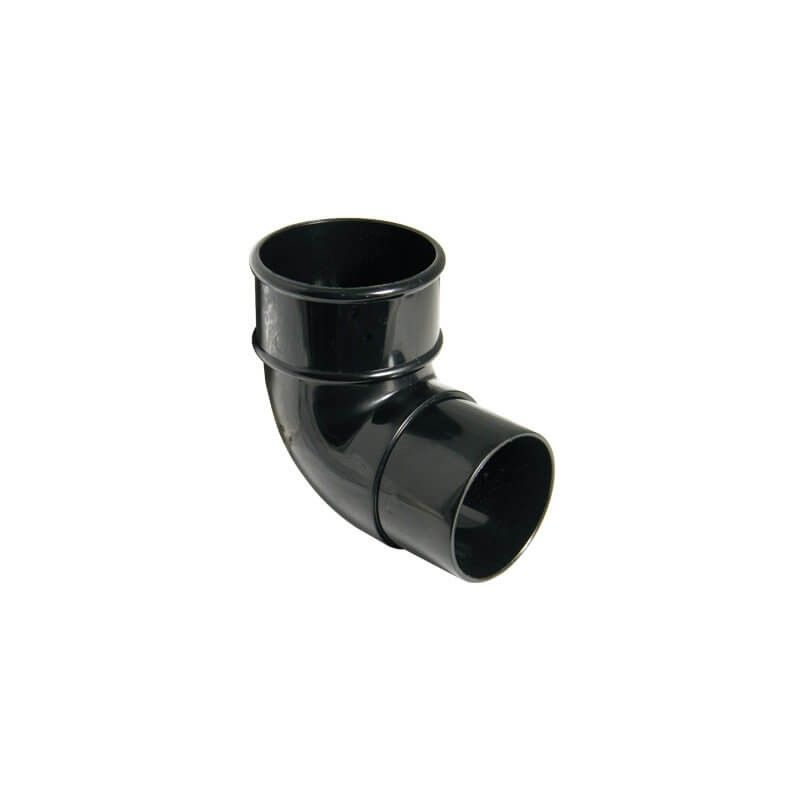

FloPlast Round Downpipe Bend - 92.5 Degree x 68mm Black - Pack of 2
In stock
Code
RB1BPK2
Click or tap the image to open in fullscreen
| Code | RB1BPK2 |
|---|---|
| EAN Code | 5056919005792 |
| Weight (kg) | 0.283600 |
| Width | 78mm |
| Angle | 92.5 Degree |
| Brand | FloPlast |
| Colour | Black |

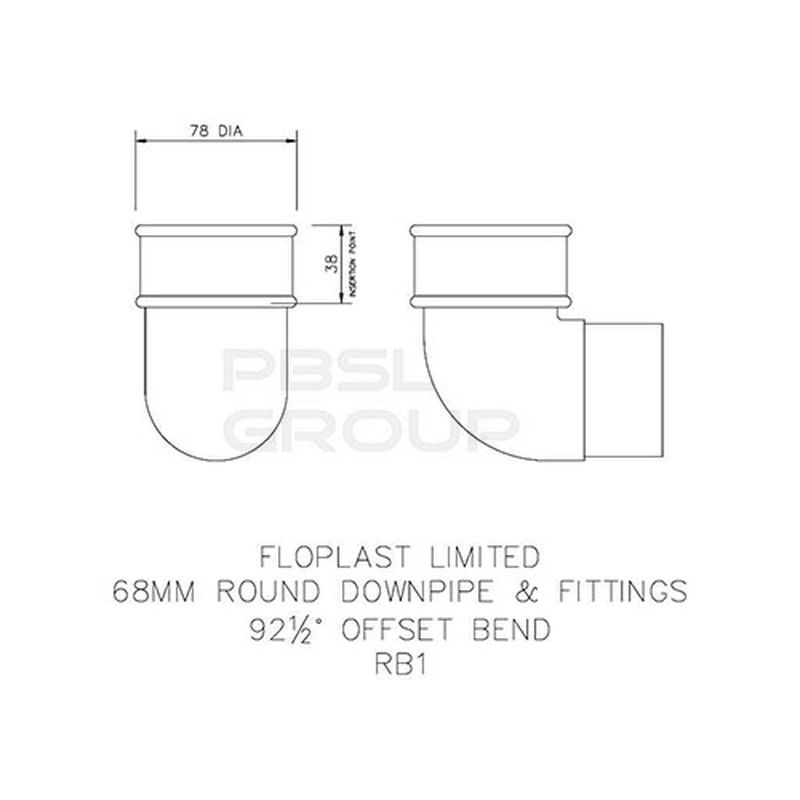

| Dimension | 78mm (W) x 116mm (L) x 126mm (D) |
| Pipe Fit | 0 |
| Guarantee | 10 Years Manufacturers |
| Length | 116mm |
| Height (mm) | 126mm |
| Material | PVC-u |
| Pack Size | Pack of 2 |
| Specification | BS EN 1462 |
| System Size | 68mm |
| Capacity | 0 |
92.5 Bends are used in a downpipe system to change the plane of the bend from vertical to horizontal or vice versa.
They are often used instead of offset bends when the soffit is particularly wide - this enables the pipe to run neatly below the soffit rather than dropping down diagonally back to the wall as it would with a normal swan neck setup.
The angle of the bend is 92.5 degrees rather than 90 degrees to encourage a slight fall, enabling rainwater to run away rather than sit in the pipe.
For a quick introduction to this fitting, please take a look at our PBSL Group video clip;
This is a pack of two.
