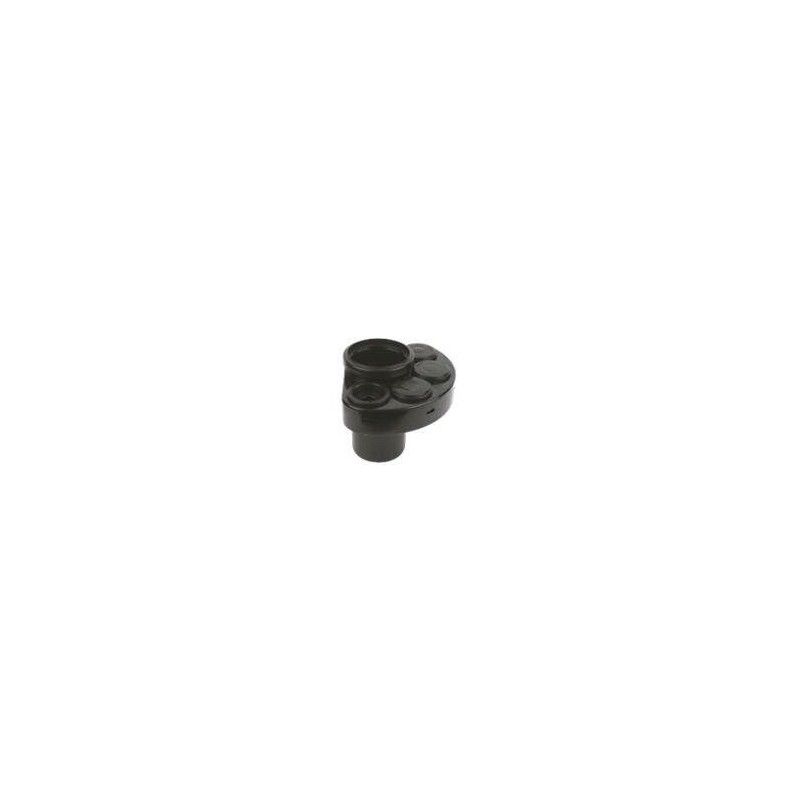

FloPlast Ring Seal Soil Manifold - 110mm Black - Pack of 2
Click or tap the image to open in fullscreen
| Code | SP588BPK2 |
|---|---|
| EAN Code | 5056919007406 |
| Weight (kg) | 1.820000 |
| Angle | 0 |
| Brand | FloPlast |
| Colour | Black |

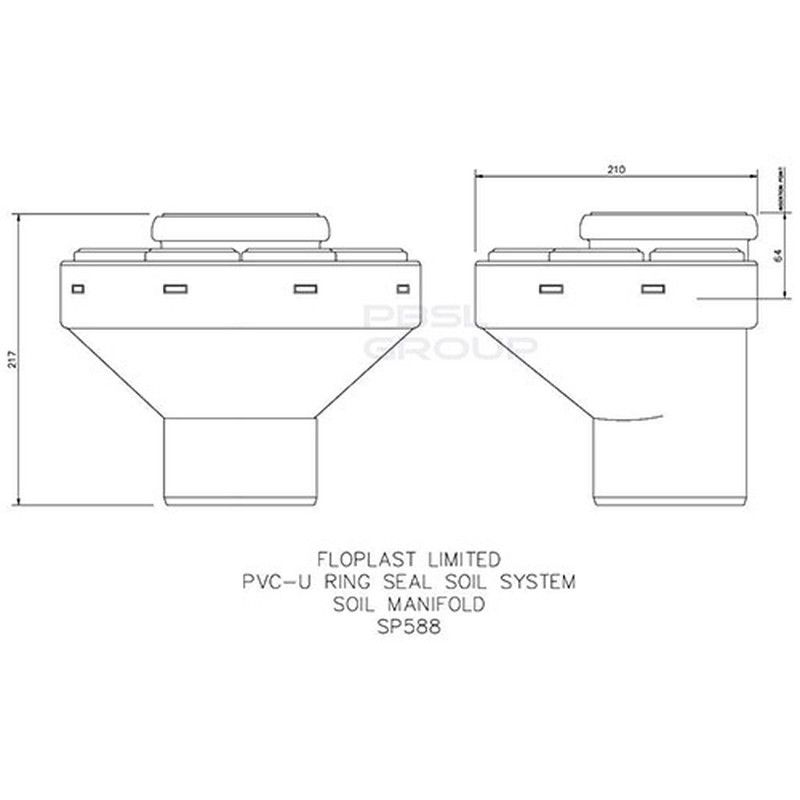

| Length | 271mm |
| Width | 210mm |
| Material | PVC-u |
| Pack Size | Pack of 2 |
| Guarantee | 1 Year Manufacturer Performance Guarantee |
| Specification | BS EN 1329-1:2000 / BS4514:2001 |
| System Size | 110mm |
| Capacity | 0 |
| Height (mm) | 217mm |
Soil manifolds are used as an alternative to boss pipes as a method of connecting waste pipes into the main soil pipe.
Up to 4 waste pipes can be connected into a soil pipe in this manner without any of the usual issues of crossflow or siphonage that can occur with traditional boss connections. The design of the manifold makes it ideal to be positioned in the corner of a room.
All waste pipe connections are pushfit, using a pre-installed rubber flange in the opening that can accept 32mm, 40mm or 50mm waste pipes.
The top soil pipe connection is a push fit ring seal socket. The bottom outlet of the manifold is a spigot that can be fitted into another ring seal or solvent weld socket.
This is a pack of two.
