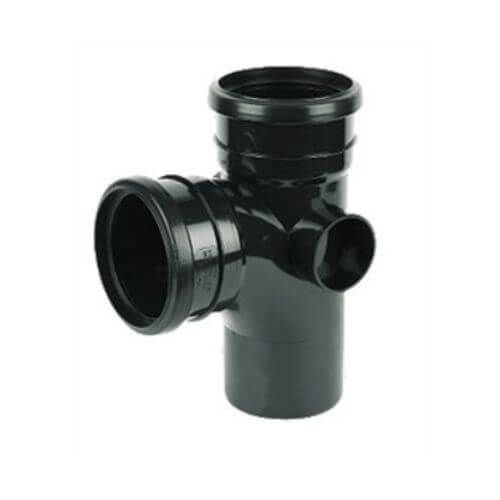

FloPlast Ring Seal Soil Branch - 92.5 Degree x 110mm Black - Pack of 2
In stock
Code
SP190BPK2
Click or tap the image to open in fullscreen
| Code | SP190BPK2 |
|---|---|
| EAN Code | 5056919007338 |
| Weight (kg) | 1.764000 |
| Angle | 92.5 Degree |
| Brand | FloPlast |
| Colour | Black |
| Length | 220mm |
| Width | 165mm |
| Material | PVC-u |
| Pack Size | Pack of 2 |

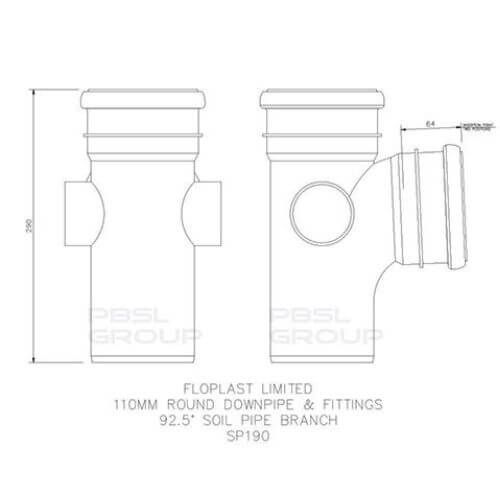

| Dimension | H290mm x 220mm (Branch Projection) x 165mm (Width including bosses) |
| Guarantee | 1 Year Manufacturer Performance Guarantee |
| Specification | BS EN 1329-1:2000 / BS4514:2001 |
| System Size | 110mm |
| Height (mm) | 290mm |
This 92.5 degree branch is one of the integral parts of any soil pipe system. It is used to bring horizontal and vertical pipe runs together, usually when connecting a pipe from a WC into the main vertical soil stack. The 92.5 degree angle creates a fall that is self-cleansing.
The top two connections are ring seal sockets, the bottom of the branch is a spigot that can be fitted into another ring seal socket.
The circular waste bosses on either side of the branch can be drilled out and used in conjunction either with our SP10, SP11 and SP12 rubber boss adaptors or our SP20, SP21 & SP22 solvent boss adaptors to introduce a 32mm, 40mm or 50mm waste pipe into the soil stack.
This is a pack of two.
