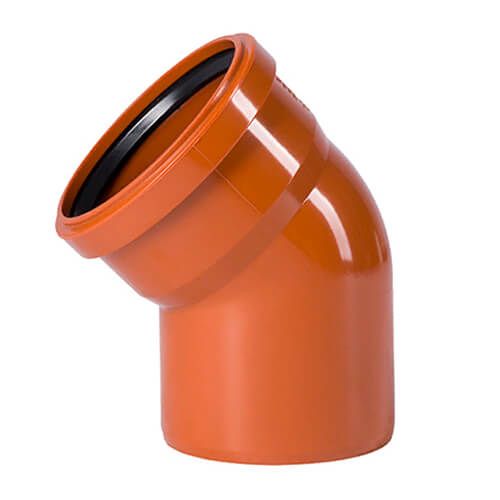

Drainage Bend Single Socket - 45 Degree x 110mm - Pack of 28
Click or tap the image to open in fullscreen
| Code | UB11045SPK28 |
|---|---|
| EAN Code | 5056919005389 |
| Weight (kg) | 8.596000 |
| Angle | 45 Degree |
| Brand | PBSL Group |
| Colour | Terracotta |
| Diameter | 110mm |
| Material | PVC-u |
| Pack Size | Pack of 28 |
| Style | Single Socket |
| Guarantee | 2 Year Manufacturer Guarantee |
| Specification | BS EN 1401-1 |
| System Size | 110mm |
This pack of 28 single socket 45 degree bends is a cost effective bulk buy for larger 110mm underground drainage projects. The 45 degree bend is most commonly used at the entry and exit points of an inspection chamber, and on the outlet of a 45 degree gully trap.
The single socket bend has one pre-chamfered spigot end so that it can be inserted directly into the socket of the main channel of an inspection chamber, or into other fittings such as branches and gullies. The other end is socketed to accept a length of 110mm drainage pipe. If that pipe has been cut to length it should be chamfered and lubricated with our SG100 lubricant before insertion to ensure the best possible seal.
Ordering 110mm drainage bends in bulk reduces the price per fitting and keeps spares to hand on site.
